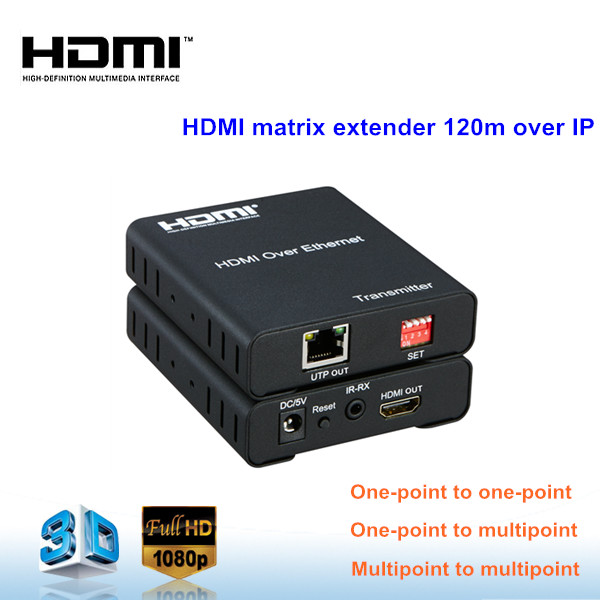

HDMI matrix extender 120m IR control over IP

Model No: LT-HDES02-M

120m HDMI Matrix Extender over IP is a device based on the standard TCP/IP protocol for transmitting HD audio and video source over LAN . It transmits your HD display with the high resolutions up to 120 meters away from your HDMI or DVI-D source by using one CAT5e/6 cable. At the same time, it’s also convenient to transmit HDMI audio and video source by point-to-point, multipoint-to-multipoint andcascade connection mode.

Features:

1.Support HDMI1.3/HDCP1.1&1.2

2.Support point-to-point mode, multipoint-to-multipoint mode and cascade connection mode.

3.Standard 802.3 Ethernet.

4.Support one way IR extension.

5.Pure hardware design, plug and play, do not need to install additional software.

Specifications:

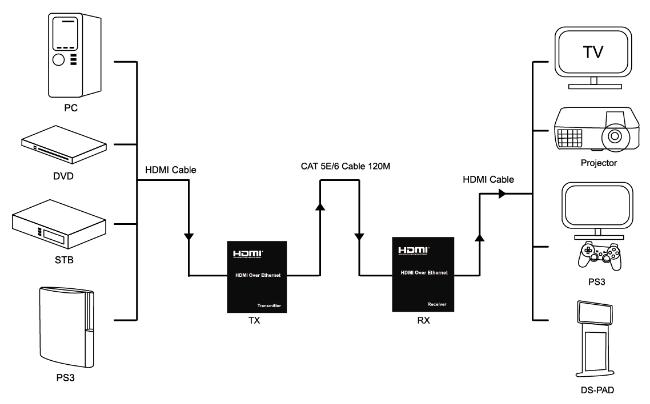

Connection and Operation:

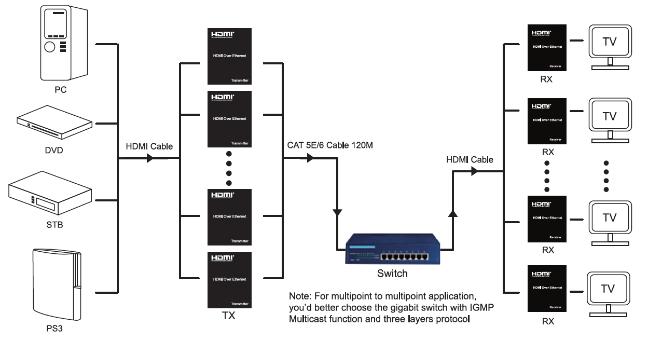

Multipoint to multipoint:

Package Included:

1) 2 pcs Main Units (1 HDMI sender,1 HDMI reciever).
2) 2 pcs 5V DC Power Supply.
3) User’s Manual.
