FEATURES:

• Support HDMI 1.4a

• Support 3D

• Support Bi-directional IR control

• Support highest video resolution 1080p/60Hz

• Support 1.5Gbps data rate and tmds clock up to 148.5MHz

• Support 8 bit deep color

• Support AWG26 HDMI standard cable, input up to 10 metres, output up to 15 metres

• Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60 meters between TX and RX.

• No loss of quality

• Install in minutes

     Need AC adapter supply

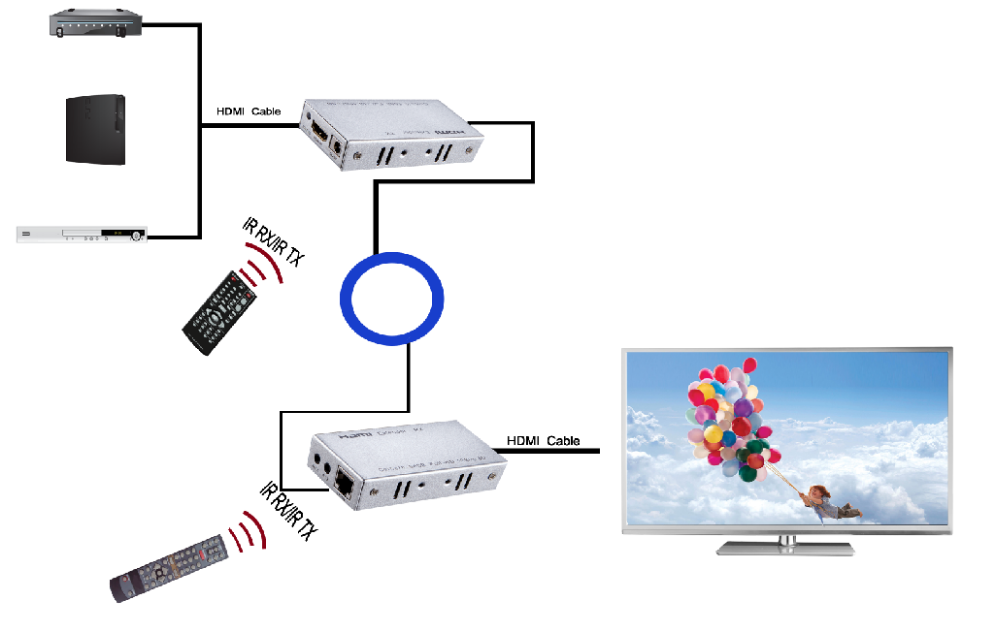

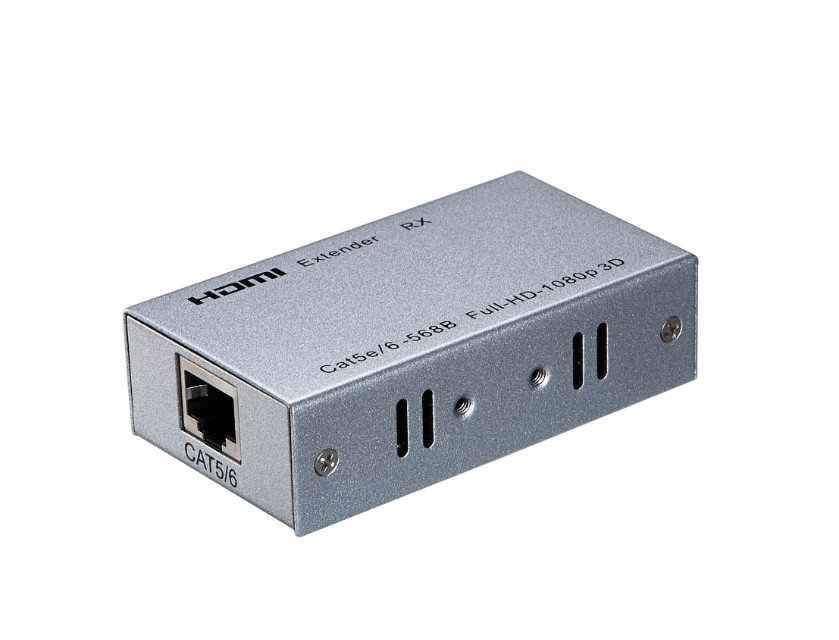

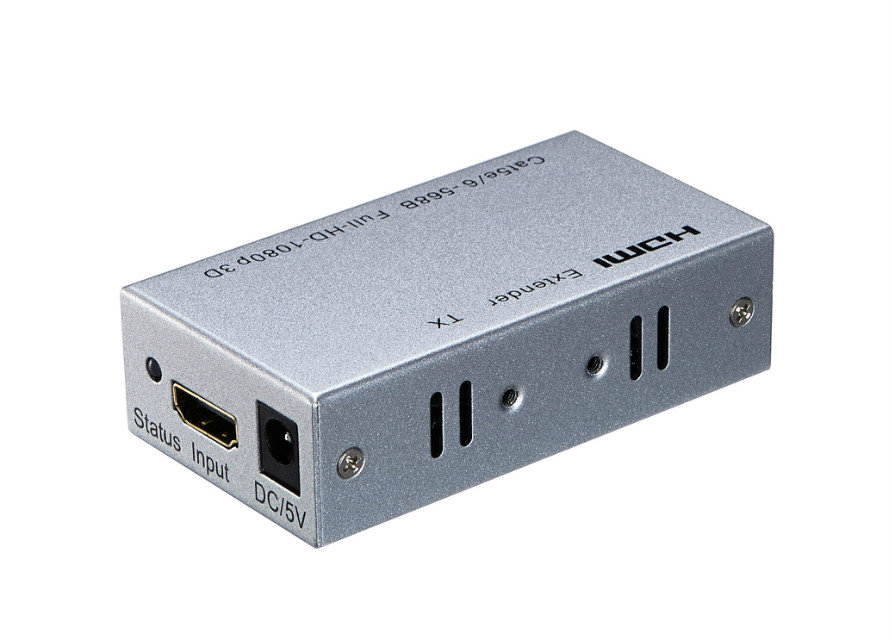

Operating and Connecting:

1. Connect one HDMI cable between source device and TX Extender, the max cable distance is 10 meters

2. Connect one HDMI cable between display device and RX Extender, the max cable distance is 15 meters

3. Connect TX and RX Extender via single cat 5E/ 6 cable , the max distance is 60 meters

4. Pls insert the IR RX cables and IR TX cables into the ports of IR RX and IR TX on Transmitter and Receiver

5. Connect 5V power supply to the TX and RX.

6. LED indicator light

TX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.

RX LED indicator light: When there is no signal input, it turns blue; When there is signal input, it turns red.

SPECIFICATIONS:

 Length of CAT-6/CAT-5E cable between RX and TX…………….............…..Up to 60 meters

HDMI Input…..…………………...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Support audio.……............................………………………………………….DTS/Dolby/DSD

HDMI Output…..…………….…...………24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i

Max bandwidth……………………………………………………………………………148.5MHz

Max baud rate……………….…….………………….………….………………………1.5 Gbps

Input video signal ………….…………………………..…………………….… 0.5~1.5Volts p-p

Output DDC signal ……………………………………………………………… 5Volts p-p (TT1L)

Input HDMI cable distance………….…………............…..≤10m AWG26 HDMI standard cable

Output HDMI cable distance............................................ ≤15m AWG26 HDMI standard cable

TX Max working current………………………………………...………….………………...510mA

RX Max working current…………………………………………...………………………...100mA

Power adapter format………...………Input:AC (50Hz, 60Hz) 100V-240V; Output: DC5V/1A

Operating Temperature range……..…………….………………………………… (-15 to +55℃)

Operating Humidity range………………………….….……….5% to 90%RH (No Condensation)

Dimension (L x W x H)     ……………………………….…………………………81x45x18 (mm)

TX Weight…..……………………………………………..………………………........………100g

RX Weight..................................................................................................................................95g
